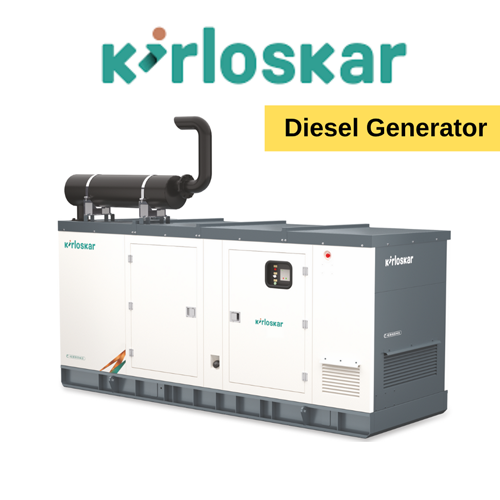

New Kirloskar Generator

Name: New Kirloskar Generator
Brand: KY ENTERPRISE

Get a Price/Quote

MOQ : 01 Number

New Kirloskar Generator Specification

Pressure
17.5:1 (Compression Ratio)

Engine Type
4 Stroke, Compression Ignition

Poles Number
4

Fuel Tank Capacity
65 Litres

Fuel Consumption
3.5 L/H at 75% Load

Engine Model
Kirloskar HA294

Standard
Conforms to IS 1460

Alternator
Brushless, Self Excited

Dimension (L*W*H)
2200 x 950 x 1300 mm

Insulation
Class H

Bore *Stroke
102 mm x 120 mm

Protection Class
IP23

Product Type
Diesel Generator

Output Type
AC Single/Three Phase

Rated Power
20 kVA

Rated Voltage
415V

Starting Type
Electric Start

Rated Frequency
50 Hz

Power Range
15-25 kVA

Color
Green

Cooling System
Water Cooled

Noise Level
Silent (Within CPCB Norms)

Phase
Three Phase

Speed
1500 RPM

Weight
Approx. 650 kg

Enclosure
Sound Proof, Weather Resistant

Built-in Safety
Low Oil Pressure, High Temperature Auto Shutdown

Aspiration Type
Naturally Aspirated

Service Accessibility
Wide Doors for Easy Maintenance

Display Features
Digital Display for Parameters

Emissions
Compliant with CPCB II Norms

Governing Class
Class A1

Mounting Type
Base Frame Mounted

Material
High Grade Steel Canopy

Controller Panel
Microprocessor based (AMF compatible)

Hour Meter
Provided

Battery Included
Yes

Voltage Regulation
1% (AVR Controlled)

Lubrication Oil Capacity
8.5 Litres

New Kirloskar Generator Trade Information

Minimum Order Quantity
01 Number

Main Export Market(s)
Asia, South America, Western Europe, Middle East

About New Kirloskar Generator

Kirloskar Silent & Open DieselGenerators

PowerRange:5 kVA to 3000 kVA
Phase:Single & Three Phase
Countryof Origin: Made in India

Product Overview

Experienceuninterrupted power and trusted performance with KirloskarDiesel Generators Indias most reliable and efficient powersolutions.

KirloskarSilent Generators are equipped with acoustic enclosures for noise-freeoperation, while Open Type Generators are designed for heavy-duty industrialapplications.
Whether for home backup or commercial power, Kirloskar gensets ensure stablevoltage, consistent frequency, and long-lasting durability maximizing uptimeand protecting your equipment.

Key Features & Benefits

High Reliability: Powered by robust Kirloskar engines engineered for long life andconsistent performance.
Silent Operation: Acoustic canopy meets CPCB IV+ standards for low noise levels.
Fuel Efficiency: Advanced fuel injection system minimizes fuel consumption andmaximizes savings.
Heavy-Duty Design: Strong alternators, anti-vibration mounts, and durableconstruction for long-term performance.
Smart Control Options: Available with Manual, AMF (AutoMains Failure), and Remote Monitoring systems.
Eco-Friendly: CPCB IV+ compliant engines ensure low emissions and cleanerperformance.
Easy Portability: Compact canopy with lifting hooks, skid base, and simple mobilityoptions.
Advanced Safety Features: Includes oil pressure sensor,water temperature indicator, circuit breaker, and emergency stop function.

Applications: Ideal forhomes, offices, hospitals, industries, showrooms, construction sites, andagricultural use.

Available Models & Applications

KirloskarSilent Diesel Generators (With Acoustic Enclosure)

15 kVA Silent DG Set: Compact model for homes, shops,and small offices.
25 kVA to 62.5 kVA: Suitable for showrooms, schools, clinics, and small industries.
82.5 kVA to 125 kVA: Ideal for mid-sized businesses, hotels, and commercial complexes.
160 kVA to 250 kVA: Perfect for large offices, hospitals, and manufacturing units.
320 kVA to 500 kVA: Reliable power for factories and infrastructure projects.
600 kVA to 1010 kVA: Heavy-duty models for data centres, large industries, andinstitutions.

Kirloskar Open Type Diesel Generators

15 kVA to 250 kVA: Cost-effective, easy-maintenance gensets for industrial andconstruction applications.

Technical Highlights

Specification	Details
Engine Type	Kirloskar CPCB IV+ Compliant Diesel Engine
Starting System	Manual / Electric Start / AMF Panel
Cooling System	Water-Cooled / Air-Cooled (as per model)
Alternator Type	Brushless, Self-Excited, High Efficiency
Frequency	50 Hz / 60 Hz
Voltage	230V (Single Phase) / 415V (Three Phase)
Insulation Class	H Class (High Protection)
Canopy Design	Powder-Coated, Weather & Sound Proof
Fuel Tank Capacity	Long-run diesel tank for extended backup
Warranty	1 Year on DG Set / 2 Years on Engine (model-based)

Why Choose Kirloskar Generators?

India leading and trusted generator brand.
Low maintenance with nationwide service support.
Superior fuel efficiency for maximum cost savings.
Environment-friendly design with low noise and emissions.
Built for 24x7 continuous heavy-duty operation.
Ready stock available with fast delivery and installation acrossIndia.

Why Choose KY Enterprise?

Authorized and experienced Kirloskar & Cummins supplier.
Quick response and prompt after-sales support.
Wide range of genuine engines, gensets, and spare parts.
Customer-focused approach ensuring complete satisfaction.

Contact Us

Forquotations, product catalogues, and expert guidance:
Mobile:+91 6352073591 (WhatsApp available)
Email:chirag@kyenterprise.com

KYEnterprise: Powering Performance withGenuine Kirloskar Solutions.

Advanced Digital Controls and Operator Safety

This Kirloskar generator is equipped with a microprocessor-based controller panel, ensuring precise operation and automation. The panel supports AMF compatibility and incorporates digital display features for clear monitoring of parameters. Built-in safety functions, such as automatic shutdown on low oil pressure and high temperature, safeguard the engine and provide peace of mind.

Engineered for Efficiency and Durability

Powered by the Kirloskar HA294 engine, this 4-stroke, naturally aspirated generator delivers consistent output with excellent fuel efficiency-consuming just 3.5 L/h at 75% load. Its high-grade steel sound-proof canopy offers weather resistance and superior noise reduction, maintaining compliance with CPCB II norms. Maintenance is straightforward with wide-access doors.

Flexible and Reliable Power Delivery

The generator operates at 1500 RPM, producing 20 kVA at 415V in three-phase AC, making it suitable for diverse installations. Electric start, IP23 protection class, and brushless self-excited alternator ensure reliable performance, while a sizable 65-litre fuel tank supports extended runtime without frequent refuelling.

FAQ's of New Kirloskar Generator:

Q: How does the microprocessor-based controller panel enhance generator operation?

A: The microprocessor-based controller panel offers automated control, precise monitoring of generator parameters via a digital display, and AMF compatibility for seamless mains-failure standby operation. This automation ensures optimal performance and ease of use, reducing the need for manual intervention.

Q: What safety features are included in the Kirloskar generator?

A: The generator includes critical safety mechanisms such as automatic shutdown in cases of low oil pressure and high engine temperature, protecting both the engine and users from potential damage or hazards. These features help maintain reliable performance and equipment longevity.

Q: Where can this generator be used given its enclosure and weather resistance?

A: With a sound-proof, weather-resistant high-grade steel canopy and compliance with CPCB II emission and noise norms, this generator is suitable for outdoor and indoor installations across industrial, commercial, and institutional settings, particularly in regions with variable weather conditions.

Q: When is generator maintenance required and how is it facilitated?

A: Routine maintenance should be conducted according to the manufacturer's guidelines, typically after a set number of operating hours or as indicated by the hour meter. Wide service doors on the canopy provide easy access for inspections, lubricating oil checks, and routine upkeep, making the process straightforward.

Q: What are the usage benefits of the AVR-controlled voltage regulation?

A: AVR (Automatic Voltage Regulator) ensures steady voltage output with only a 1% variation, protecting sensitive electrical equipment from fluctuations and improving overall power quality. This is particularly advantageous for applications requiring stable and reliable electricity supply.

Q: How is the generator started and what power output can be expected?

A: The generator features an electric start system for user convenience. It provides a rated power output of 20 kVA at 415V (three-phase), suitable for a range of industrial and commercial power requirements.

Q: What process should be followed if the generator shuts down unexpectedly?

A: If the generator shuts down unexpectedly, check the digital display for alerts indicating possible causes such as low oil pressure or high temperature. Address the issues-top up oil or allow cooling as needed-before attempting a restart, following the manufacturer's safety instructions.
