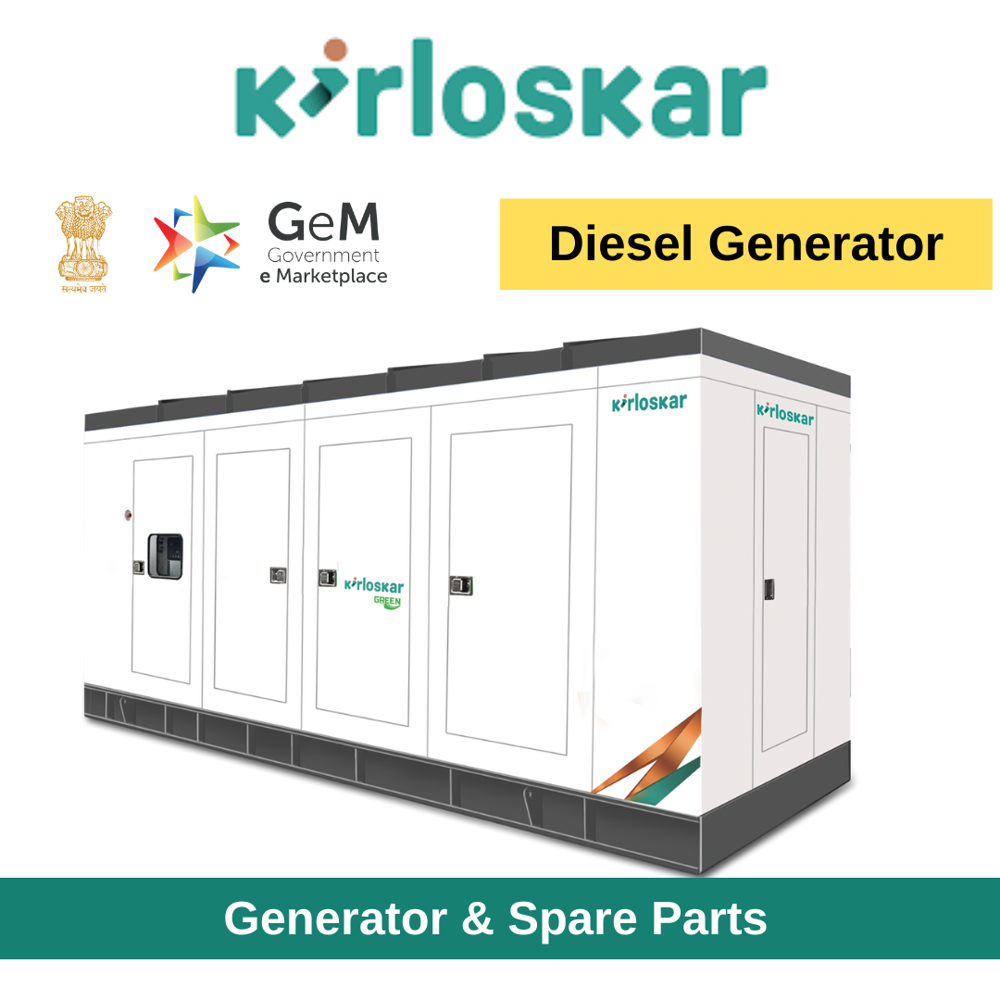

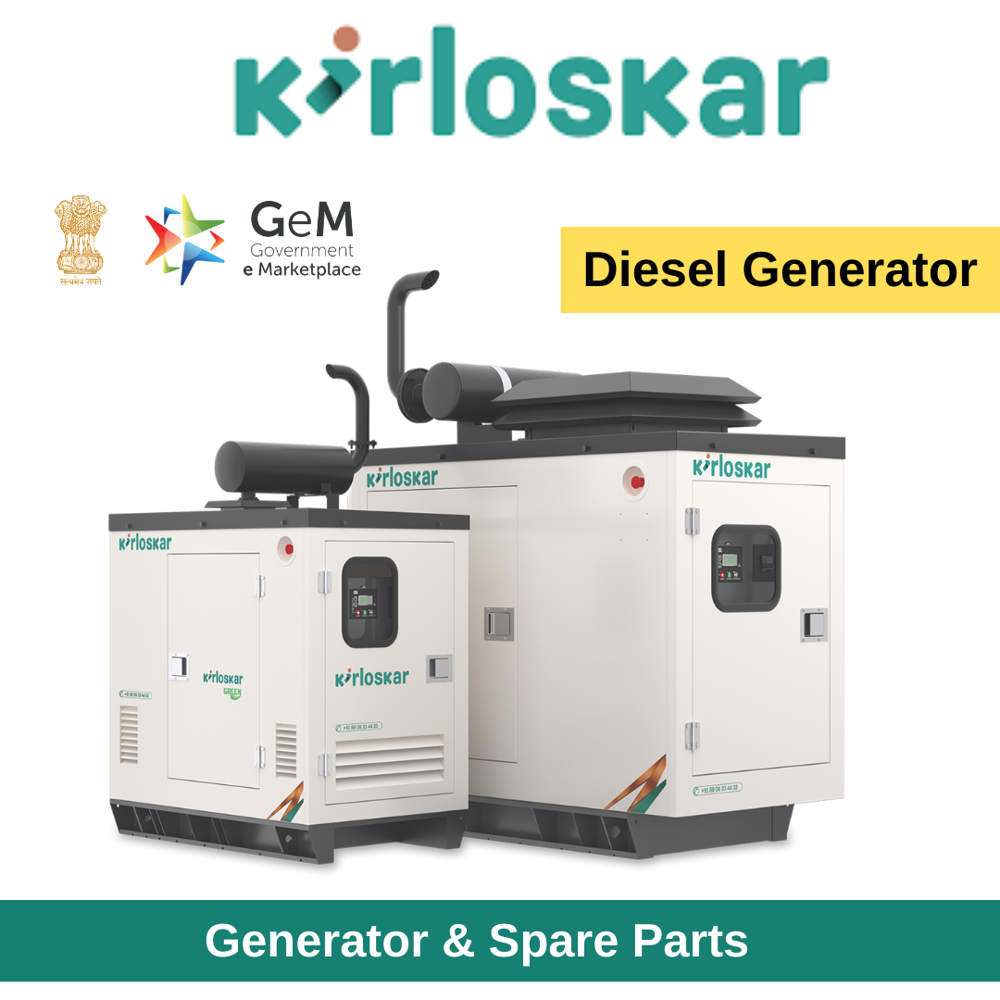

Kirloskar Diesel Engine Self Start

Name: Kirloskar Diesel Engine Self Start
Brand: KY ENTERPRISE

Get a Price/Quote

MOQ : 1 Piece

Kirloskar Diesel Engine Self Start Specification

Pressure
NA (Standard for engines)

Poles Number
4

Fuel Consumption
3 to 19 L/hr (model dependent)

Engine Model
Kirloskar Proprietary Series (for example, HA series or RA series as per kVA)

Standard
Meets ISO & CPCB-II norms

Dimension (L*W*H)
Depends on kVA rating (example: 2700x1000x1400 mm for 62.5 kVA)

Protection Class
IP 23

Bore *Stroke
As per model (example: 102mm x 130mm)

Fuel Tank Capacity
As per model (example: 100-250 Litres)

Alternator
Brushless, Self Excited

Engine Type
4 Stroke, Compression Ignition

Insulation
Class H

Product Type
Diesel Engine Self Start Generator

Output Type
AC Power Output

Rated Power
As per model (commonly available in 5 kVA to 125 kVA options)

Rated Voltage
230V / 415V

Starting Type
Self Start (Electric Start)

Rated Frequency
50 Hz

Power Range
5 kVA to 125 kVA

Color
Kirloskar Standard (Light Grey/Green)

Cooling System
Water Cooled

Noise Level
Silent / Low Noise (meets CPCB norms)

Phase
Single/Three Phase

Speed
1500 RPM

Weight
Varies by model (approx. 850-2200 kg)

Governor Type
Mechanical/Electronic (model specific)

Safety Features
Low oil pressure, High water temperature, Overload protection, Short circuit protection

Duty
Continuous (Prime)

Application
Industrial, Commercial, Construction, Emergency Backup

Alternator Make
Kirloskar/Branded OEM

Service Interval
250 hours or as specified in manual

Voltage Regulation
1%

Fuel Type
High Speed Diesel

Exhaust System
Industrial Grade Low Emission

Controller
Microprocessor based auto/manual control panel

Display Features
Digital/LED display (hours run, voltage, current, etc.)

Lubrication System
Full pressure lubrication with spin-on oil filter

Battery Included
Yes, with cables for electric start

About Kirloskar Diesel Engine Self Start

Kirloskar Silent & Open Diesel Generators

Power Range: 5 kVA to 3000 kVA
Phase: Single & Three Phase
Country of Origin: Made in India

Product Overview

Experience uninterrupted power and trusted performance with Kirloskar Diesel Generators Indias most reliable and efficient power solutions.

Kirloskar Silent Generators are equipped with acoustic enclosures for noise-free operation, while Open Type Generators are designed for heavy-duty industrial applications.
Whether for home backup or commercial power, Kirloskar gensets ensure stable voltage, consistent frequency, and long-lasting durability maximizing uptime and protecting your equipment.

Key Features & Benefits

High Reliability: Powered by robust Kirloskar engines engineered for long life and consistent performance.

Silent Operation: Acoustic canopy meets CPCB IV+ standards for low noise levels.

Fuel Efficiency: Advanced fuel injection system minimizes fuel consumption and maximizes savings.

Heavy-Duty Design: Strong alternators, anti-vibration mounts, and durable construction for long-term performance.

Smart Control Options: Available with Manual, AMF (Auto Mains Failure), and Remote Monitoring systems.

Eco-Friendly: CPCB IV+ compliant engines ensure low emissions and cleaner performance.

Easy Portability: Compact canopy with lifting hooks, skid base, and simple mobility options.

Advanced Safety Features: Includes oil pressure sensor, water temperature indicator, circuit breaker, and emergency stop function.

Applications: Ideal for homes, offices, hospitals, industries, showrooms, construction sites, and agricultural use.

Available Models & Applications

Kirloskar Silent Diesel Generators (With Acoustic Enclosure)

15 kVA Silent DG Set: Compact model for homes, shops, and small offices.

25 kVA to 62.5 kVA: Suitable for showrooms, schools, clinics, and small industries.

82.5 kVA to 125 kVA: Ideal for mid-sized businesses, hotels, and commercial complexes.

160 kVA to 250 kVA: Perfect for large offices, hospitals, and manufacturing units.

320 kVA to 500 kVA: Reliable power for factories and infrastructure projects.

600 kVA to 1010 kVA: Heavy-duty models for data centres, large industries, and institutions.

Kirloskar Open Type Diesel Generators

15 kVA to 250 kVA: Cost-effective, easy-maintenance gensets for industrial and construction applications.

Technical Highlights

Specification	Details
Engine Type	Kirloskar CPCB IV+ Compliant Diesel Engine
Starting System	Manual / Electric Start / AMF Panel
Cooling System	Water-Cooled / Air-Cooled (as per model)
Alternator Type	Brushless, Self-Excited, High Efficiency
Frequency	50 Hz / 60 Hz
Voltage	230V (Single Phase) / 415V (Three Phase)
Insulation Class	H Class (High Protection)
Canopy Design	Powder-Coated, Weather & Sound Proof
Fuel Tank Capacity	Long-run diesel tank for extended backup
Warranty	1 Year on DG Set / 2 Years on Engine (model-based)

Why Choose Kirloskar Generators?

India leading and trusted generator brand.

Low maintenance with nationwide service support.

Superior fuel efficiency for maximum cost savings.

Environment-friendly design with low noise and emissions.

Built for 24x7 continuous heavy-duty operation.

Ready stock available with fast delivery and installation across India.

Why Choose KY Enterprise?

Authorized and experienced Kirloskar & Cummins supplier.

Quick response and prompt after-sales support.

Wide range of genuine engines, gensets, and spare parts.

Customer-focused approach ensuring complete satisfaction.

Contact Us

For quotations, product catalogues, and expert guidance.

KY Enterprise: Powering Performance with Genuine Kirloskar Solutions.

Advanced Control and Monitoring

Experience convenient management with the microprocessor-based auto/manual control panel. Real-time data including hours run, voltage, and current is displayed on the digital or LED interface, enabling easy monitoring and timely maintenance reminders. The electric self-start function powered by the included battery ensures swift and reliable activation in critical situations.

Designed for Industrial Performance

Engineered for continuous prime duty, the Kirloskar diesel engine excels in demanding industrial, commercial, or construction environments. Its water-cooled, four-stroke compression ignition engine delivers consistent AC power output while maintaining low noise and emissions within CPCB and ISO standards. The robust alternator and full pressure lubrication system guarantee prolonged service intervals and maintenance efficiency.

Comprehensive Safety and Compliance

Safety features integrated into every unit include protection against low oil pressure, high water temperature, overloads, and short circuits, ensuring sustained and secure operation. The generator meets stringent CPCB-II and ISO standards for emissions and quality, while the industrial-grade exhaust and IP 23 protection class enhance durability and reliability under diverse operational conditions.

FAQ's of Kirloskar Diesel Engine Self Start:

Q: How does the self-start function operate on the Kirloskar Diesel Engine generator?

A: The self-start feature uses an included battery and electric starter. When activated, the microprocessor-based panel automatically engages the starter, bringing the engine online without manual cranking. This function ensures quick and effortless power restoration, especially valuable during emergencies.

Q: What are the key safety features included with this generator?

A: This diesel generator provides multiple safeguarding systems: low oil pressure shutoff, high water temperature alarm, overload protection, and short circuit protection. These measures collectively protect both the engine and electrical systems from potential damage, promoting longer equipment life and user safety.

Q: When is maintenance required for the Kirloskar diesel engine genset?

A: Routine maintenance should be performed every 250 hours of operation or as detailed in the user manual. Regularly check oil, coolant, filters, and battery levels to maintain peak performance, as indicated by the digital/LED display for hours run and other vital parameters.

Q: Where can this generator be installed and used?

A: The generator is suitable for industrial, commercial, construction, and emergency backup settings. It can be installed outdoors or in well-ventilated spaces complying with local safety regulations. Its silent/low-noise design and low emission exhaust make it adaptable to urban and remote environments alike.

Q: What are the benefits of using Kirloskar's microprocessor-based control panel?

A: The advanced control panel enables easy switching between auto and manual modes, facilitates monitoring of critical parameters on a digital/LED display, and offers diagnostic alerts for maintenance. This minimises downtime, enhances user control, and improves reliability in continuous-duty operations.

Q: How does voltage regulation and power output remain stable?

A: The generator is equipped with a high-quality alternator and a governor (mechanical or electronic, model-dependent) that provide precise 1% voltage regulation. Output remains stable even with varying loads, ensuring sensitive equipment and tools operate efficiently without risk of voltage fluctuations.
