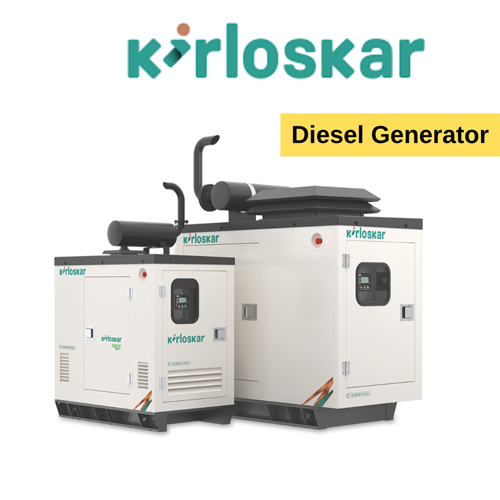

Kirloskar Dg Set

Name: Kirloskar Dg Set
Brand: KY ENTERPRISE

Get a Price/Quote

MOQ : 01 Number

Kirloskar Dg Set Specification

Fuel Tank Capacity
50 Liters

Poles Number
4

Insulation
Class H

Engine Model
Kirloskar HA294

Fuel Consumption
2.4 Ltr/hr at 75% load

Engine Type
4 Stroke, Direct Injection Diesel Engine

Standard
ISO 9001:2015 Certified

Dimension (L*W*H)
2200 mm x 1000 mm x 1350 mm

Alternator
Brushless with AVR

Protection Class
IP23

Pressure
18.5:1 Compression Ratio

Bore *Stroke
102 mm x 120 mm

Product Type
Silent Diesel Generator Set

Output Type
AC Single & Three Phase

Rated Power
10 kVA

Rated Voltage
415 V

Starting Type
Electric Start

Rated Frequency
50 Hz

Power Range
7.5 - 25 kVA

Color
Green

Cooling System
Water Cooled

Noise Level
75 dB(A) @1m

Phase
Three Phase

Speed
1500 rpm

Weight
950 kg (approx)

Lubrication System
Forced lubrication by gear pump

Exhaust System
Industrial silencer with rain cap

Genset Controller
Digital, Auto/Manual controls

Governing Class
G2 as per ISO 8528-1

Oil Sump Capacity
8.5 Liters

Cooling Water Capacity
12 Liters

Frequency Regulation
+/-0.5%

Ambient Temperature Limit
Up to 50C

Altitude Capability
Up to 1000 meters without derating

Fuel Type
High Speed Diesel (HSD)

Enclosure Type
Acoustic, weatherproof canopy

Voltage Regulation
+/-1% with AVR

Battery Voltage
12V DC

Alternator Efficiency
Above 88%

Overload Protection
Provided

Kirloskar Dg Set Trade Information

Minimum Order Quantity
01 Number

Main Export Market(s)
Asia, Central America, South America, Eastern Europe, Middle East

About Kirloskar Dg Set

PowerRange:5 kVA to 3000 kVA
Phase:Single & Three Phase
Countryof Origin: Made in India

Product Overview

Experienceuninterrupted power and trusted performance with KirloskarDiesel Generators Indias most reliable and efficient powersolutions.

KirloskarSilent Generators are equipped with acoustic enclosures for noise-freeoperation, while Open Type Generators are designed for heavy-duty industrialapplications.
Whether for home backup or commercial power, Kirloskar gensets ensure stablevoltage, consistent frequency, and long-lasting durability maximizing uptimeand protecting your equipment.

Key Features & Benefits

· Powered by robust Kirloskar engines engineered for long life andconsistent performance.

· Acoustic canopy meets CPCB IV+ standards for low noise levels.

· Advanced fuel injection system minimizes fuel consumption andmaximizes savings.

· Strong alternators, anti-vibration mounts, and durableconstruction for long-term performance.

· Available with Manual, AMF (AutoMains Failure), and Remote Monitoring systems.

· CPCB IV+ compliant engines ensure low emissions and cleanerperformance.

· Compact canopy with lifting hooks, skid base, and simple mobilityoptions.

· Includes oil pressure sensor,water temperature indicator, circuit breaker, and emergency stop function.

Applications: Ideal forhomes, offices, hospitals, industries, showrooms, construction sites, andagricultural use.

Available Models & Applications

KirloskarSilent Diesel Generators (With Acoustic Enclosure)

· Compact model for homes, shops,and small offices.

· Suitable for showrooms, schools, clinics, and small industries.

· Ideal for mid-sized businesses, hotels, and commercial complexes.

· Perfect for large offices, hospitals, and manufacturing units.

· Reliable power for factories and infrastructure projects.

· Heavy-duty models for data centres, large industries, andinstitutions.

Kirloskar Open Type Diesel Generators

15 kVA to 250 kVA: Cost-effective, easy-maintenance gensets for industrial andconstruction applications.

Technical Highlights

Specification	Details
Engine Type	Kirloskar CPCB IV+ Compliant Diesel Engine
Starting System	Manual / Electric Start / AMF Panel
Cooling System	Water-Cooled / Air-Cooled (as per model)
Alternator Type	Brushless, Self-Excited, High Efficiency
Frequency	50 Hz / 60 Hz
Voltage	230V (Single Phase) / 415V (Three Phase)
Insulation Class	H Class (High Protection)
Canopy Design	Powder-Coated, Weather & Sound Proof
Fuel Tank Capacity	Long-run diesel tank for extended backup
Warranty	1 Year on DG Set / 2 Years on Engine (model-based)

Why Choose Kirloskar Generators?

· · · · · · Why Choose KY Enterprise?

· · · · Customer-focused approach ensuring complete satisfaction.

Contact Us

Forquotations, product catalogues, and expert guidance:
Mobile:+91 6352073591 (WhatsApp available)
Email:chirag@kyenterprise.com

KYEnterprise: Powering Performance withGenuine Kirloskar Solutions.

Keywords: KirloskarGenerator, Kirloskar Diesel Generator, Kirloskar Silent Generator, Kirloskar DGSet, Kirloskar Open Type Generator, 15 kVA Kirloskar Generator, 62.5 kVA DGSet, 125 kVA Kirloskar Genset, Kirloskar CPCB IV+ Generator, KirloskarIndustrial Generator, Kirloskar Commercial Generator, Kirloskar Diesel GensetPrice, Kirloskar Generator Dealer in India, Kirloskar Generator Supplier,Kirloskar Generator with Canopy, Kirloskar AMF Panel Generator, Kirloskar OpenDiesel Generator.

High-Performance Engineering

The Kirloskar DG Set incorporates a tough 4-stroke diesel engine and brushless alternator with AVR for above 88% efficiency. With robust overload protection and state-of-the-art governing (G2, ISO 8528-1), the system is built to perform under demanding conditions. Its fuel-efficient design ensures only 2.4 L/h consumption at 75% load, making it an economical solution.

Advanced Digital Controls

Equipped with a modern genset controller, this diesel generator set supports both auto and manual modes. Digital controls empower seamless monitoring and adjustment, ensuring stable power delivery whether you're on-site or operating remotely. Overload protection and precise frequency regulation (+/-0.5%) add to the operational reliability.

Reliable Performance in Extreme Conditions

Engineered for the Indian environment, the DG set operates efficiently up to 50C ambient temperature and at altitudes up to 1000 meters without derating. The enclosure's acoustic, weatherproof design limits noise emissions to 75 dB(A) at 1 meter, making it suitable for installations in urban and industrial settings.

FAQ's of Kirloskar Dg Set:

Q: How does the Kirloskar DG Set maintain voltage stability?

A: Voltage regulation is managed through an Automatic Voltage Regulator (AVR), ensuring stability within +/-1% even under varying load conditions, which safeguards sensitive equipment.

Q: What is the process for starting and operating the generator?

A: The DG set features an electric start system and can be operated in both auto and manual modes via the digital controller. Easy-to-use interfaces facilitate smooth startup and control transitions.

Q: When should routine maintenance be performed on this DG set?

A: Routine maintenance such as oil, filter, and coolant checks should align with the manufacturer's recommended intervals, typically after a specified number of operational hours or as dictated by site conditions.

Q: Where is the Kirloskar DG Set ideally installed?

A: The generator is designed for installation in varied environments, including commercial, industrial, and institutional settings, thanks to its weatherproof acoustic enclosure and ability to operate at high temperatures and altitudes.

Q: What are the usage benefits of the forced lubrication and cooling systems?

A: Forced lubrication by gear pump and an efficient water-cooled system increase engine life, minimize wear, and ensure optimal operation in heavy-duty applications.

Q: How does the generator provide protection against overload?

A: Integrated overload protection systems automatically sense excess load and prevent potential damage by interrupting the power supply, ensuring both equipment safety and operational continuity.

Q: What are the advantages of the acoustic enclosure?

A: The acoustic, weatherproof canopy minimizes noise (up to 75 dB(A) @1m) and protects the genset from environmental factors, supporting compliance with noise norms and extending equipment lifespan.
