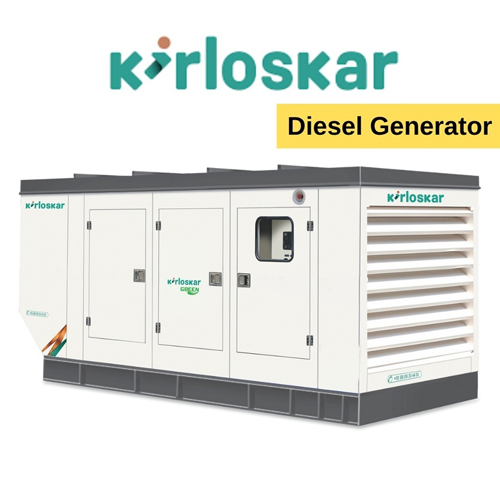

Send Inquiry1000 Kva Generator Kirloskar
MOQ : 01 Number
1000 Kva Generator Kirloskar Specification
- Dimension (L*W*H)
- 5000 mm x 2100 mm x 2400 mm
- Insulation
- Class H
- Protection Class
- IP23
- Poles Number
- 4
- Engine Type
- 4-Stroke, Turbocharged, Aftercooled Diesel Engine
- Standard
- ISO 9001 Certified
- Pressure
- Boosted Turbocharged
- Bore *Stroke
- 159 mm x 159 mm
- Alternator
- Brushless, Synchronous
- Fuel Consumption
- 184 Ltr/hr (at full load)
- Fuel Tank Capacity
- 1000 Litres
- Engine Model
- Kirloskar KTA 38-G
- Product Type
- Diesel Generator
- Output Type
- AC Three Phase
- Rated Power
- 1000 kVA
- Rated Voltage
- 415 V
- Starting Type
- Electric Start
- Rated Frequency
- 50 Hz
- Power Range
- 1000 kVA
- Color
- Green
- Cooling System
- Water Cooled
- Noise Level
- Silent (Low Noise)
- Phase
- Three Phase
- Speed
- 1500 RPM
- Weight
- Approx. 8300 kg
- Controller Type
- Auto Mains Failure (AMF) Panel
- Battery Capacity
- 2 x 180 AH
- Alternator Efficiency
- Over 93%
- Intake Air Flow
- 91.0 m3/min
- Altitude Capability
- Up to 1000 meters above sea level
- Governing Class
- Class G2 as per ISO 8528
- Exhaust Gas Temperature
- < 450C
- Rated Power Factor
- 0.8 lagging
- Cooling Water Flow Rate
- 600 LPM
- Total Displacement
- 37.8 Litres
- Fuel Type
- High Speed Diesel (HSD)
- Lubricating Oil System
- Forced Lubrication with Full Flow Filters
- No. of Cylinders
- 12 (V-Type)
1000 Kva Generator Kirloskar Trade Information
- Minimum Order Quantity
- 01 Number
- Main Export Market(s)
- Asia, Central America, South America, Eastern Europe, Middle East
About 1000 Kva Generator Kirloskar
PowerRange:5 kVA to 3000 kVA
Phase:Single & Three Phase
Countryof Origin: Made in India
Product Overview
Experienceuninterrupted power and trusted performance with KirloskarDiesel Generators Indias most reliable and efficient powersolutions.
KirloskarSilent Generators are equipped with acoustic enclosures for noise-freeoperation, while Open Type Generators are designed for heavy-duty industrialapplications.
Whether for home backup or commercial power, Kirloskar gensets ensure stablevoltage, consistent frequency, and long-lasting durability maximizing uptimeand protecting your equipment.
Key Features & Benefits
· Powered by robust Kirloskar engines engineered for long life andconsistent performance.
· Acoustic canopy meets CPCB IV+ standards for low noise levels.
· Advanced fuel injection system minimizes fuel consumption andmaximizes savings.
· Strong alternators, anti-vibration mounts, and durableconstruction for long-term performance.
· Available with Manual, AMF (AutoMains Failure), and Remote Monitoring systems.
· CPCB IV+ compliant engines ensure low emissions and cleanerperformance.
· Compact canopy with lifting hooks, skid base, and simple mobilityoptions.
· Includes oil pressure sensor,water temperature indicator, circuit breaker, and emergency stop function.
Applications: Ideal forhomes, offices, hospitals, industries, showrooms, construction sites, andagricultural use.
Available Models & Applications
KirloskarSilent Diesel Generators (With Acoustic Enclosure)
· Compact model for homes, shops,and small offices.
· Suitable for showrooms, schools, clinics, and small industries.
· Ideal for mid-sized businesses, hotels, and commercial complexes.
· Perfect for large offices, hospitals, and manufacturing units.
· Reliable power for factories and infrastructure projects.
· Heavy-duty models for data centres, large industries, andinstitutions.
Kirloskar Open Type Diesel Generators
15 kVA to 250 kVA: Cost-effective, easy-maintenance gensets for industrial andconstruction applications.
Technical Highlights
| Specification | Details |
| Engine Type | Kirloskar CPCB IV+ Compliant Diesel Engine |
| Starting System | Manual / Electric Start / AMF Panel |
| Cooling System | Water-Cooled / Air-Cooled (as per model) |
| Alternator Type | Brushless, Self-Excited, High Efficiency |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 230V (Single Phase) / 415V (Three Phase) |
| Insulation Class | H Class (High Protection) |
| Canopy Design | Powder-Coated, Weather & Sound Proof |
| Fuel Tank Capacity | Long-run diesel tank for extended backup |
| Warranty | 1 Year on DG Set / 2 Years on Engine (model-based) |
Why Choose Kirloskar Generators?
· · · · · · Why Choose KY Enterprise?
· · · · Contact Us
Forquotations, product catalogues, and expert guidance:
Mobile:+91 6352073591 (WhatsApp available)
Email:chirag@kyenterprise.com
KYEnterprise: Powering Performance withGenuine Kirloskar Solutions.
Keywords: KirloskarGenerator, Kirloskar Diesel Generator, Kirloskar Silent Generator, Kirloskar DGSet, Kirloskar Open Type Generator, 15 kVA Kirloskar Ge
Kirloskar Silent & Open DieselGenerators
PowerRange:5 kVA to 3000 kVA
Phase:Single & Three Phase
Countryof Origin: Made in India
Product Overview
Experienceuninterrupted power and trusted performance with KirloskarDiesel Generators Indias most reliable and efficient powersolutions.
KirloskarSilent Generators are equipped with acoustic enclosures for noise-freeoperation, while Open Type Generators are designed for heavy-duty industrialapplications.
Whether for home backup or commercial power, Kirloskar gensets ensure stablevoltage, consistent frequency, and long-lasting durability maximizing uptimeand protecting your equipment.
Key Features & Benefits
· Powered by robust Kirloskar engines engineered for long life andconsistent performance.
· Acoustic canopy meets CPCB IV+ standards for low noise levels.
· Advanced fuel injection system minimizes fuel consumption andmaximizes savings.
· Strong alternators, anti-vibration mounts, and durableconstruction for long-term performance.
· Available with Manual, AMF (AutoMains Failure), and Remote Monitoring systems.
· CPCB IV+ compliant engines ensure low emissions and cleanerperformance.
· Compact canopy with lifting hooks, skid base, and simple mobilityoptions.
· Includes oil pressure sensor,water temperature indicator, circuit breaker, and emergency stop function.
Applications: Ideal forhomes, offices, hospitals, industries, showrooms, construction sites, andagricultural use.
Available Models & Applications
KirloskarSilent Diesel Generators (With Acoustic Enclosure)
· Compact model for homes, shops,and small offices.
· Suitable for showrooms, schools, clinics, and small industries.
· Ideal for mid-sized businesses, hotels, and commercial complexes.
· Perfect for large offices, hospitals, and manufacturing units.
· Reliable power for factories and infrastructure projects.
· Heavy-duty models for data centres, large industries, andinstitutions.
Kirloskar Open Type Diesel Generators
15 kVA to 250 kVA: Cost-effective, easy-maintenance gensets for industrial andconstruction applications.
Technical Highlights
| Specification | Details |
| Engine Type | Kirloskar CPCB IV+ Compliant Diesel Engine |
| Starting System | Manual / Electric Start / AMF Panel |
| Cooling System | Water-Cooled / Air-Cooled (as per model) |
| Alternator Type | Brushless, Self-Excited, High Efficiency |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 230V (Single Phase) / 415V (Three Phase) |
| Insulation Class | H Class (High Protection) |
| Canopy Design | Powder-Coated, Weather & Sound Proof |
| Fuel Tank Capacity | Long-run diesel tank for extended backup |
| Warranty | 1 Year on DG Set / 2 Years on Engine (model-based) |
Why Choose Kirloskar Generators?
· · · · · · Why Choose KY Enterprise?
· · · · Customer-focused approach ensuring complete satisfaction.
Contact Us
Forquotations, product catalogues, and expert guidance:
Mobile:+91 6352073591 (WhatsApp available)
Email:chirag@kyenterprise.com
KYEnterprise: Powering Performance withGenuine Kirloskar Solutions.
Keywords: KirloskarGenerator, Kirloskar Diesel Generator, Kirloskar Silent Generator, Kirloskar DGSet, Kirloskar Open Type Generator, 15 kVA Kirloskar Generator, 62.5 kVA DGSet, 125 kVA Kirloskar Genset, Kirloskar CPCB IV+ Generator, KirloskarIndustrial Generator, Kirloskar Commercial Generator, Kirloskar Diesel GensetPrice, Kirloskar Generator Dealer in India, Kirloskar Generator Supplier,Kirloskar Generator with Canopy, Kirloskar AMF Panel Generator, Kirloskar OpenDiesel Generator.
nerator, 62.5 kVA DGSet, 125 kVA Kirloskar Genset, Kirloskar CPCB IV+ Generator, KirloskarIndustrial Generator, Kirloskar Commercial Generator, Kirloskar Diesel GensetPrice, Kirloskar Generator Dealer in India, Kirloskar Generator Supplier,Kirloskar Generator with Canopy, Kirloskar AMF Panel Generator, Kirloskar OpenDiesel Generator.
Unparalleled Performance and Efficiency
Experience sustained power delivery with over 93% alternator efficiency and a boosted turbocharged 12-cylinder 4-stroke diesel engine. The AMF panel automatically manages switchovers, ensuring minimal downtime and consistent output for critical operations.
Robust and Reliable Engineered Design
With a full-flow forced lubrication system and water-cooled technology circulating at 600 LPM, the generator maintains optimal operating temperatures and lubrication under high loads. The durable build and Class H insulation guarantee long-term reliability even at altitudes up to 1000 meters.
User-Friendly Operation and Maintenance
The generator is engineered with an electric start and low-noise operation. Maintenance is streamlined thanks to brushless alternators, full-flow oil filters, and high-quality build standards, ensuring hassle-free management for users and service providers.
FAQ's of 1000 Kva Generator Kirloskar:
Q: How does the Auto Mains Failure (AMF) panel operate on the 1000 kVA Kirloskar Generator?
A: The AMF panel automatically detects a mains power failure and starts the generator without human intervention. Once normal power resumes, the panel switches the load back to the mains supply and safely shuts down the generator, ensuring continuous, hassle-free power.Q: What are the recommended usage scenarios for this 1000 kVA Kirloskar generator?
A: This generator is ideal for industrial plants, commercial complexes, hospitals, data centers, and other critical facilities where uninterrupted three-phase power of up to 1000 kVA is essential. Its high efficiency and silent operation make it suitable for noise-sensitive environments.Q: When should regular maintenance be conducted on this generator?
A: Routine maintenance, including checks on lubrication, filters, coolant level, and battery health, should typically be performed every 250 hours of operation or monthly, whichever occurs first. Always refer to Kirloskar's service schedule for precise intervals.Q: Where can the generator be installed for optimal performance and safety?
A: Install the generator in a well-ventilated, secure outdoor or purpose-built indoor area, ensuring easy access for maintenance. The site should be level, with sufficient space to accommodate its dimensions (5000mm x 2100mm x 2400mm) and allow proper airflow to the cooling system.Q: What benefits does the forced lubrication and full-flow filter system provide?
A: The forced lubrication system ensures that all engine components receive consistent oil flow, reducing wear and increasing engine lifespan. Full-flow filters keep the oil clean, contributing to reliable performance and minimizing maintenance issues.Q: How does the generator handle operation at different altitudes and temperatures?
A: This Kirloskar generator is designed to operate efficiently at altitudes up to 1000 meters above sea level and maintains exhaust temperatures below 450C, ensuring consistent performance across varied environmental conditions.Q: What is the typical process for starting and stopping the generator?
A: Starting is straightforward with the electric start system. For manual operation, simply engage the electric starter; for automated systems, the AMF panel manages everything. Stopping the unit is automatic upon mains restoration, or it can be shut down manually when needed.
