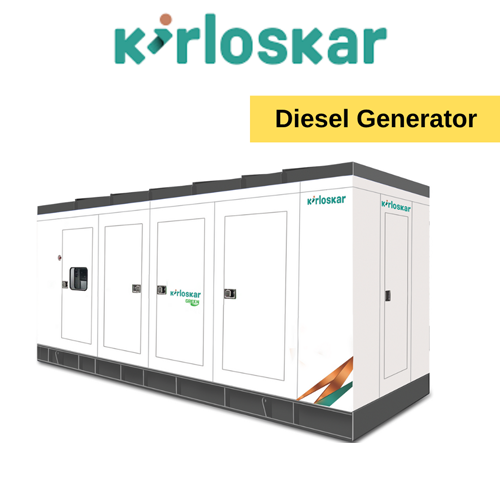

Dg Set 25 Kva Kirloskar

Name: Dg Set 25 Kva Kirloskar
Brand: KY ENTERPRISE

Get a Price/Quote

MOQ : 01 Number

Dg Set 25 Kva Kirloskar Specification

Standard
Conforms to CPCB II emission norms

Pressure
Compression Ratio 16.5:1

Bore *Stroke
104 x 113 mm

Dimension (L*W*H)
2000 mm x 900 mm x 1300 mm (approx.)

Insulation
Class H

Fuel Tank Capacity
80 Litres

Poles Number
4 Pole

Fuel Consumption
6.8 Ltrs/hr at 100% load

Engine Model
Kirloskar 3R1040TA

Alternator
Brushless, Self Excited

Engine Type
4 Stroke, Turbocharged, Inline

Protection Class
IP23

Product Type
Diesel Generator Set

Output Type
AC Three Phase

Rated Power
25 KVA

Rated Voltage
415 V

Starting Type
Electric Start

Rated Frequency
50 Hz

Power Range
20-30 kVA

Color
Green

Cooling System
Water Cooled

Noise Level
75 dB(A) at 1 meter under free field conditions

Phase
Three Phase

Speed
1500 RPM

Weight
Approx. 950 kg

Alternator Make
Kirloskar Green

Battery Capacity
12V, 88Ah

Governing Class
G2

Canopy Type
Acoustic, Weatherproof

Exhaust System
Dry exhaust with residential silencer

Overload Capacity
10% for 1 Hour in 12 Hours operation

Maximum Ambient Temperature
50C

Frequency Regulation
+/- 0.5%

Voltage Regulation
+/- 1% (static)

Altitude Correction
Apply de-rating above 1000 meters

Control Panel Type
AMF panel with protection features

Lubrication Oil Capacity
8.2 Litres

Dg Set 25 Kva Kirloskar Trade Information

Minimum Order Quantity
01 Number

Main Export Market(s)
Asia, South America, Eastern Europe, Western Europe, Middle East

About Dg Set 25 Kva Kirloskar

Kirloskar Silent & Open DieselGenerators

PowerRange:5 kVA to 3000 kVA
Phase:Single & Three Phase
Countryof Origin: Made in India

Product Overview

Experienceuninterrupted power and trusted performance with KirloskarDiesel Generators Indias most reliable and efficient powersolutions.

KirloskarSilent Generators are equipped with acoustic enclosures for noise-freeoperation, while Open Type Generators are designed for heavy-duty industrialapplications.
Whether for home backup or commercial power, Kirloskar gensets ensure stablevoltage, consistent frequency, and long-lasting durability maximizing uptimeand protecting your equipment.

Key Features & Benefits

High Reliability: Powered by robust Kirloskar engines engineered for long life andconsistent performance.
Silent Operation: Acoustic canopy meets CPCB IV+ standards for low noise levels.
Fuel Efficiency: Advanced fuel injection system minimizes fuel consumption andmaximizes savings.
Heavy-Duty Design: Strong alternators, anti-vibration mounts, and durableconstruction for long-term performance.
Smart Control Options: Available with Manual, AMF (AutoMains Failure), and Remote Monitoring systems.
Eco-Friendly: CPCB IV+ compliant engines ensure low emissions and cleanerperformance.
Easy Portability: Compact canopy with lifting hooks, skid base, and simple mobilityoptions.
Advanced Safety Features: Includes oil pressure sensor,water temperature indicator, circuit breaker, and emergency stop function.

Applications: Ideal forhomes, offices, hospitals, industries, showrooms, construction sites, andagricultural use.

Available Models & Applications

KirloskarSilent Diesel Generators (With Acoustic Enclosure)

15 kVA Silent DG Set: Compact model for homes, shops,and small offices.
25 kVA to 62.5 kVA: Suitable for showrooms, schools, clinics, and small industries.
82.5 kVA to 125 kVA: Ideal for mid-sized businesses, hotels, and commercial complexes.
160 kVA to 250 kVA: Perfect for large offices, hospitals, and manufacturing units.
320 kVA to 500 kVA: Reliable power for factories and infrastructure projects.
600 kVA to 1010 kVA: Heavy-duty models for data centres, large industries, andinstitutions.

Kirloskar Open Type Diesel Generators

15 kVA to 250 kVA: Cost-effective, easy-maintenance gensets for industrial andconstruction applications.

Technical Highlights

Specification	Details
Engine Type	Kirloskar CPCB IV+ Compliant Diesel Engine
Starting System	Manual / Electric Start / AMF Panel
Cooling System	Water-Cooled / Air-Cooled (as per model)
Alternator Type	Brushless, Self-Excited, High Efficiency
Frequency	50 Hz / 60 Hz
Voltage	230V (Single Phase) / 415V (Three Phase)
Insulation Class	H Class (High Protection)
Canopy Design	Powder-Coated, Weather & Sound Proof
Fuel Tank Capacity	Long-run diesel tank for extended backup
Warranty	1 Year on DG Set / 2 Years on Engine (model-based)

Why Choose Kirloskar Generators?

India leading and trusted generator brand.
Low maintenance with nationwide service support.
Superior fuel efficiency for maximum cost savings.
Environment-friendly design with low noise and emissions.
Built for 24x7 continuous heavy-duty operation.
Ready stock available with fast delivery and installation acrossIndia.

Why Choose KY Enterprise?

Authorized and experienced Kirloskar & Cummins supplier.
Quick response and prompt after-sales support.
Wide range of genuine engines, gensets, and spare parts.
Customer-focused approach ensuring complete satisfaction.

Contact Us

Forquotations, product catalogues, and expert guidance:
Mobile:+91 6352073591 (WhatsApp available)
Email:chirag@kyenterprise.com

KYEnterprise: Powering Performance withGenuine Kirloskar Solutions.

Outstanding Performance in Demanding Conditions

The Kirloskar 25 KVA DG Set is engineered to operate seamlessly under challenging conditions, including high ambient temperatures up to 50C and altitudes above 1000 meters (with de-rating). Thanks to its turbocharged engine and water-cooled system, consistent performance is ensured, and its robust structure withstands harsh weather and usage environments.

User-Friendly and Safe Operation

Equipped with an AMF control panel, electric start, and numerous protection features, the DG set ensures easy and safe operation. The acoustic, weatherproof canopy keeps noise levels low at just 75 dB(A) at 1 meter, making it suitable for urban and sensitive environments, while also safeguarding internal components from dust and moisture.

Reliability and Compliance

Manufactured by Kirloskar, a leader in power solutions, this DG Set is not only reliable but also complies with CPCB II emission norms. The combination of brushless, self-excited alternators and Class H insulation ensures longevity, while the overload capacity allows the unit to handle variable loads with ease.

FAQ's of Dg Set 25 Kva Kirloskar:

Q: How is the Kirloskar 25 KVA DG Set started and what are its safety features?

A: The Kirloskar 25 KVA DG Set is equipped with an electric start system for effortless operation. Its AMF (Automatic Mains Failure) panel includes various built-in protection features such as overload protection, engine safety shutdowns, and voltage regulation to ensure reliable and safe functioning.

Q: What environments and industries is this DG Set suitable for use in?

A: This generator is ideal for industrial, commercial, and construction applications, particularly in locations requiring robust power backup. Its weatherproof, acoustic canopy and high ambient temperature tolerance make it suitable for both outdoor and indoor installations across India.

Q: When should altitude de-rating be considered for this DG Set?

A: Altitude de-rating should be applied for installations above 1000 meters. Beyond this elevation, the engine's power output can reduce due to lower air density, so the capacity must be adjusted accordingly to ensure reliable operation.

Q: What is the maintenance process for the generator's lubrication oil system?

A: The DG Set has a lubrication oil capacity of 8.2 liters. Regular maintenance involves checking oil levels, changing the oil as per manufacturer recommendations, and ensuring the engine is properly lubricated to prevent wear and extend service life.

Q: Where are the benefits of the acoustic and weatherproof canopy most noticeable?

A: The acoustic, weatherproof canopy provides significant benefits in locations where noise reduction and protection from environmental conditions are essential, such as residential areas, hospitals, and urban industrial zones. It helps maintain low noise emission and shields the generator from dust and rain.

Q: How can users benefit from the AMF control panel in daily operation?

A: The AMF (Automatic Mains Failure) control panel automatically switches generator operation during power outages and restores utility power when it returns. This ensures uninterrupted supply and minimizes manual intervention, enhancing convenience and productivity for users.
