Send Inquiry100 Kva Kirloskar Dg Set
MOQ : 01 Number
100 Kva Kirloskar Dg Set Specification
- Standard
- IS/IEC 60034-1
- Protection Class
- IP23
- Insulation
- Class H
- Engine Type
- 4 Stroke, Inline, Turbocharged
- Poles Number
- 4
- Dimension (L*W*H)
- 3200 mm x 1100 mm x 1750 mm
- Bore *Stroke
- 108 mm x 140 mm
- Pressure
- Compression Ratio 16:1
- Engine Model
- 6R1080TAG2
- Alternator
- Kirloskar Brushless Alternator
- Fuel Consumption
- 21.5 Ltr/hr at 100% Load
- Fuel Tank Capacity
- 210 Liters
- Product Type
- Diesel Generator Set
- Output Type
- AC Three Phase
- Rated Power
- 100 kVA
- Rated Voltage
- 415 V
- Starting Type
- Electric Start
- Rated Frequency
- 50 Hz
- Power Range
- 90-110 kVA
- Color
- Green
- Cooling System
- Water Cooled
- Noise Level
- Low Noise, Silent Operation
- Phase
- Three Phase
- Speed
- 1500 RPM
- Weight
- Approx 2000 kg
- Voltage Regulation
- +/- 1%
- Alternator Efficiency
- Above 90%
- Battery Capacity
- 2x12V, 180 Ah
- Control Panel
- Standard AMF/Auto Mains Failure Panel
- Aspiration
- Turbocharged Aftercooled
- Rated Current
- 139 Amps
- Lubrication Oil Capacity
- 17 Liters
- Exhaust Outlet Size
- 80 mm
- Fuel Type
- High Speed Diesel
- Governor Type
- Mechanical
100 Kva Kirloskar Dg Set Trade Information
- Minimum Order Quantity
- 01 Number
- Main Export Market(s)
- Asia, Central America, South America, Eastern Europe, Middle East
About 100 Kva Kirloskar Dg Set
PowerRange:5 kVA to 3000 kVA
Phase:Single & Three Phase
Countryof Origin: Made in India
Product Overview
Experienceuninterrupted power and trusted performance with KirloskarDiesel Generators Indias most reliable and efficient powersolutions.
KirloskarSilent Generators are equipped with acoustic enclosures for noise-freeoperation, while Open Type Generators are designed for heavy-duty industrialapplications.
Whether for home backup or commercial power, Kirloskar gensets ensure stablevoltage, consistent frequency, and long-lasting durability maximizing uptimeand protecting your equipment.
Key Features & Benefits
Powered by robust Kirloskar engines engineered for long life andconsistent performance.
Acoustic canopy meets CPCB IV+ standards for low noise levels.
Advanced fuel injection system minimizes fuel consumption andmaximizes savings.
Strong alternators, anti-vibration mounts, and durableconstruction for long-term performance.
Available with Manual, AMF (AutoMains Failure), and Remote Monitoring systems.
CPCB IV+ compliant engines ensure low emissions and cleanerperformance.
Compact canopy with lifting hooks, skid base, and simple mobilityoptions.
Includes oil pressure sensor,water temperature indicator, circuit breaker, and emergency stop function.
Applications: Ideal forhomes, offices, hospitals, industries, showrooms, construction sites, andagricultural use.
Available Models & Applications
KirloskarSilent Diesel Generators (With Acoustic Enclosure)
Compact model for homes, shops,and small offices.
Suitable for showrooms, schools, clinics, and small industries.
Ideal for mid-sized businesses, hotels, and commercial complexes.
Perfect for large offices, hospitals, and manufacturing units.
Reliable power for factories and infrastructure projects.
Heavy-duty models for data centres, large industries, andinstitutions.
Kirloskar Open Type Diesel Generators
15 kVA to 250 kVA: Cost-effective, easy-maintenance gensets for industrial andconstruction applications.
Technical Highlights
| Specification | Details |
| Engine Type | Kirloskar CPCB IV+ Compliant Diesel Engine |
| Starting System | Manual / Electric Start / AMF Panel |
| Cooling System | Water-Cooled / Air-Cooled (as per model) |
| Alternator Type | Brushless, Self-Excited, High Efficiency |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 230V (Single Phase) / 415V (Three Phase) |
| Insulation Class | H Class (High Protection) |
| Canopy Design | Powder-Coated, Weather & Sound Proof |
| Fuel Tank Capacity | Long-run diesel tank for extended backup |
| Warranty | 1 Year on DG Set / 2 Years on Engine (model-based) |
Why Choose Kirloskar Generators?
Why Choose KY Enterprise?
Contact Us
Forquotations, product catalogues, and expert guidance:
Mobile:+91 6352073591 (WhatsApp available)
Email:chirag@kyenterprise.com
KYEnterprise: Powering Performance withGenuine Kirloskar Solutions.
Kirloskar Silent & Open DieselGenerators
PowerRange:5 kVA to 3000 kVA
Phase:Single & Three Phase
Countryof Origin: Made in India
Product Overview
Experienceuninterrupted power and trusted performance with KirloskarDiesel Generators Indias most reliable and efficient powersolutions.
KirloskarSilent Generators are equipped with acoustic enclosures for noise-freeoperation, while Open Type Generators are designed for heavy-duty industrialapplications.
Whether for home backup or commercial power, Kirloskar gensets ensure stablevoltage, consistent frequency, and long-lasting durability maximizing uptimeand protecting your equipment.
Key Features & Benefits
Powered by robust Kirloskar engines engineered for long life andconsistent performance.
Acoustic canopy meets CPCB IV+ standards for low noise levels.
Advanced fuel injection system minimizes fuel consumption andmaximizes savings.
Strong alternators, anti-vibration mounts, and durableconstruction for long-term performance.
Available with Manual, AMF (AutoMains Failure), and Remote Monitoring systems.
CPCB IV+ compliant engines ensure low emissions and cleanerperformance.
Compact canopy with lifting hooks, skid base, and simple mobilityoptions.
Includes oil pressure sensor,water temperature indicator, circuit breaker, and emergency stop function.
Applications: Ideal forhomes, offices, hospitals, industries, showrooms, construction sites, andagricultural use.
Available Models & Applications
KirloskarSilent Diesel Generators (With Acoustic Enclosure)
Compact model for homes, shops,and small offices.
Suitable for showrooms, schools, clinics, and small industries.
Ideal for mid-sized businesses, hotels, and commercial complexes.
Perfect for large offices, hospitals, and manufacturing units.
Reliable power for factories and infrastructure projects.
Heavy-duty models for data centres, large industries, andinstitutions.
Kirloskar Open Type Diesel Generators
15 kVA to 250 kVA: Cost-effective, easy-maintenance gensets for industrial andconstruction applications.
Technical Highlights
| Specification | Details |
| Engine Type | Kirloskar CPCB IV+ Compliant Diesel Engine |
| Starting System | Manual / Electric Start / AMF Panel |
| Cooling System | Water-Cooled / Air-Cooled (as per model) |
| Alternator Type | Brushless, Self-Excited, High Efficiency |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 230V (Single Phase) / 415V (Three Phase) |
| Insulation Class | H Class (High Protection) |
| Canopy Design | Powder-Coated, Weather & Sound Proof |
| Fuel Tank Capacity | Long-run diesel tank for extended backup |
| Warranty | 1 Year on DG Set / 2 Years on Engine (model-based) |
Why Choose Kirloskar Generators?
Why Choose KY Enterprise?
Customer-focused approach ensuring complete satisfaction.
Contact Us
Forquotations, product catalogues, and expert guidance:
Mobile:+91 6352073591 (WhatsApp available)
Email:chirag@kyenterprise.com
KYEnterprise: Powering Performance withGenuine Kirloskar Solutions.
Keywords: KirloskarGenerator, Kirloskar Diesel Generator, Kirloskar Silent Generator, Kirloskar DGSet, Kirloskar Open Type Generator, 15 kVA Kirloskar Generator, 62.5 kVA DGSet, 125 kVA Kirloskar Genset, Kirloskar CPCB IV+ Generator, KirloskarIndustrial Generator, Kirloskar Commercial Generator, Kirloskar Diesel GensetPrice, Kirloskar Generator Dealer in India, Kirloskar Generator Supplier,Kirloskar Generator with Canopy, Kirloskar AMF Panel Generator, Kirloskar OpenDiesel Generator.
Keywords: KirloskarGenerator, Kirloskar Diesel Generator, Kirloskar Silent Generator, Kirloskar DGSet, Kirloskar Open Type Generator, 15 kVA Kirloskar Generator, 62.5 kVA DGSet, 125 kVA Kirloskar Genset, Kirloskar CPCB IV+ Generator, KirloskarIndustrial Generator, Kirloskar Commercial Generator, Kirloskar Diesel GensetPrice, Kirloskar Generator Dealer in India, Kirloskar Generator Supplier,Kirloskar Generator with Canopy, Kirloskar AMF Panel Generator, Kirloskar OpenDiesel Generator.
Efficient Turbocharged Engine for Consistent Power
The Kirloskar 100 KVA DG Set is powered by a 6R1080TAG2 turbocharged aftercooled engine, providing fast response and reliability even under fluctuating loads. Its 4-stroke, inline design with mechanical governing delivers stable power while maintaining fuel efficiency and minimal emissions, ensuring your operations run smoothly at all times.
Advanced AMF Panel & Silent Operation
Outfitted with a standard AMF (Auto Mains Failure) panel, this generator ensures seamless automatic switching during power outages. Its soundproof enclosure, advanced cooling system, and low noise features provide a quiet working environment, making it suitable for hospitals, offices, and residential complexes where silent operation is essential.
Durable Build & Safety Features
Crafted with high-quality materials and IP23 protection, this generator is designed to endure the demanding conditions of Indian industries. Class H insulation, robust alternators, and 17 liters lubrication oil capacity ensure longevity and safety. Regular maintenance ensures optimal performance and a longer operational lifespan.
FAQ's of 100 Kva Kirloskar Dg Set:
Q: How does the standard AMF panel function in the 100 KVA Kirloskar DG Set?
A: The AMF (Auto Mains Failure) panel detects power outages and automatically starts the generator to ensure uninterrupted power supply. When mains power resumes, the panel safely switches the load back and shuts down the generator, offering fully automated operation.Q: What are the benefits of the turbocharged aftercooled engine in this DG set?
A: The turbocharged aftercooled engine increases air intake and cooling efficiency, resulting in better combustion, higher power output, and improved fuel efficiency. This leads to reliable performance and reduced emissions during sustained operations.Q: When is maintenance recommended for this diesel generator?
A: Routine maintenance, including oil change and filter inspection, is advised every 250 running hours or as recommended in the user manual. Regular checks enhance reliability, ensure optimal performance, and extend the generator's operational life.Q: Where can the 100 KVA Kirloskar DG Set be installed?
A: This DG set is suitable for various locations such as commercial buildings, factories, hospitals, and residential complexes across India. Its compact dimensions and silent operation make it ideal for spaces where noise and footprint must be minimized.Q: What is the fuel consumption rate and capacity of the generator?
A: At 100% load, the generator consumes approximately 21.5 liters of high speed diesel per hour. It is equipped with a 210-liter fuel tank, allowing for extended continuous operation before refueling is needed.Q: How does the protection class IP23 benefit users?
A: The IP23 protection rating safeguards the generator's internal components from solid objects above 12.5mm and sprays of water up to 60 from the vertical, enhancing reliability and safety, especially in industrial and outdoor applications.Q: What makes this DG set a good choice for three-phase power applications?
A: With a 100 kVA power capacity, three-phase output, and precise voltage regulation (+/- 1%), this generator is ideal for powering large motors, industrial equipment, and commercial facilities where stable and reliable electricity is critical.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Diesel Generators Category

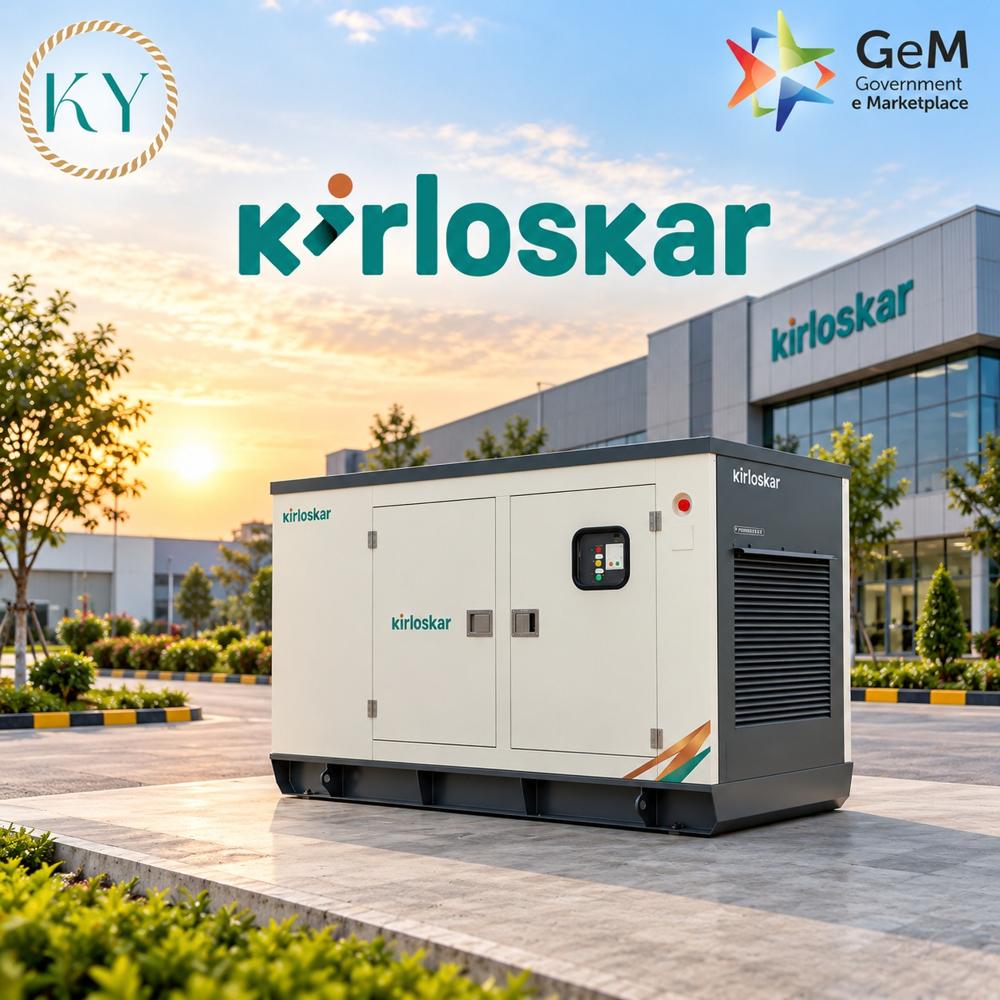

Kirloskar Generator 3kva
Price 250000.00 INR / Piece
Minimum Order Quantity : 1 Piece
Product Type : Kirloskar Generator
Power Range : 3 kVA continuous
Weight : Approx. 350400 kg
Starting Type : Electric Start
Kirloskar Genset 15 Kva
Price 280000.00 INR / Piece
Minimum Order Quantity : 1 Piece
Product Type : Diesel Generator Set
Power Range : 1215 KVA
Weight : Approx. 900 Kg
Starting Type : Electric Start

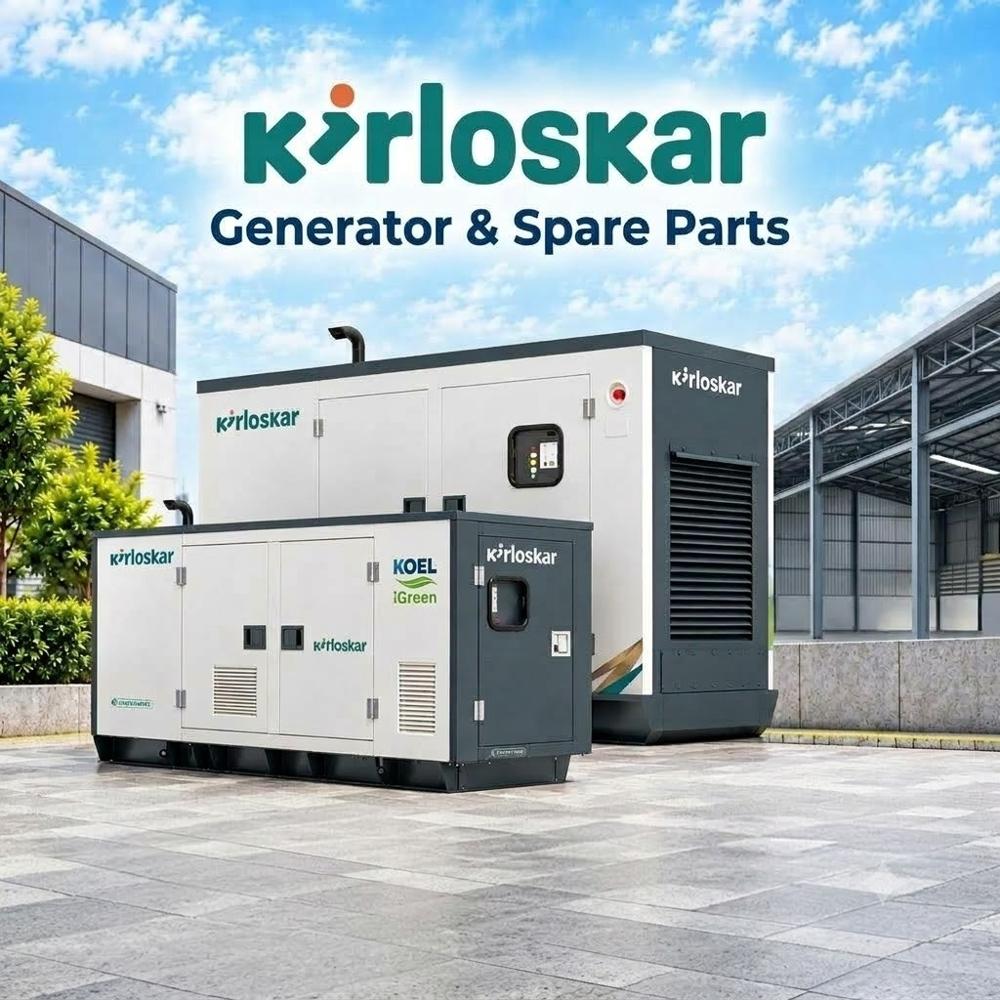

Kirloskar Power Backup
